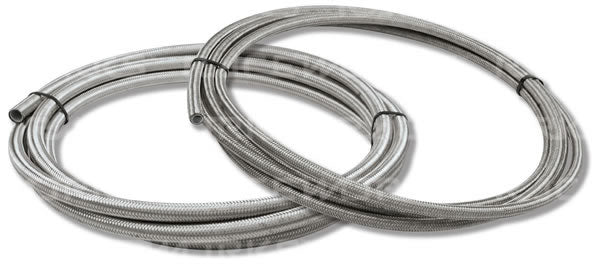

Raceworks 200 Series PTFE Braided Hose
Raceworks 200 Series PTFE Braided Hose
Regular price
$20.99 AUD
Regular price
Sale price
$20.99 AUD
Taxes included.
Quantity
Couldn't load pickup availability

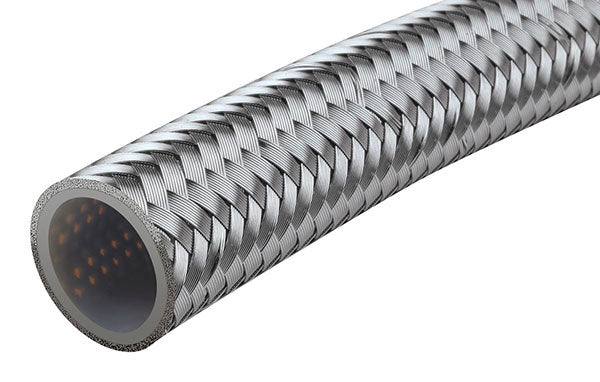

Raceworks 200 Series PTFE Braided Hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE tube is covered by a stainless steel outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 200 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses.
Sold per M - If wanting multiple metres increase the quantity
Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe
Specifications
| Size | Operating Pressure | Burst Pressure | Inside dia Inch | Inside dia mm | Outside dia Inch | Outside dia mm | Weight (gm/m) | Bend Radius (Inch) | Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|---|
| AN-3 | 3000psi | 10000psi | 1/8″ | 3.1mm | 1/4″ | 6.4mm | 66g | 0.95″ | 24mm |
| AN-4 | 3000psi | 10000psi | 3/16″ | 4.7mm | 5/16″ | 7.9mm | 85g | 1.00″ | 25mm |
| AN-6 | 2500psi | 9000psi | 5/16″ | 7.9mm | 15/32″ | 11.8mm | 139g | 1.30″ | 33mm |
| AN-8 | 2000psi | 7000psi | 13/32″ | 10.5mm | 17/32″ | 13.3mm | 176g | 1.69″ | 43mm |
| AN-10 | 1500psi | 5000psi | 17/32″ | 13.4mm | 41/64″ | 16.2mm | 222g | 2.09″ | 53mm |
| AN-12 | 1200psi | 4500psi | 41/64″ | 16.2mm | 49/64″ | 19.3mm | 246g | 4.53″ | 115mm |
