Link Engine Management

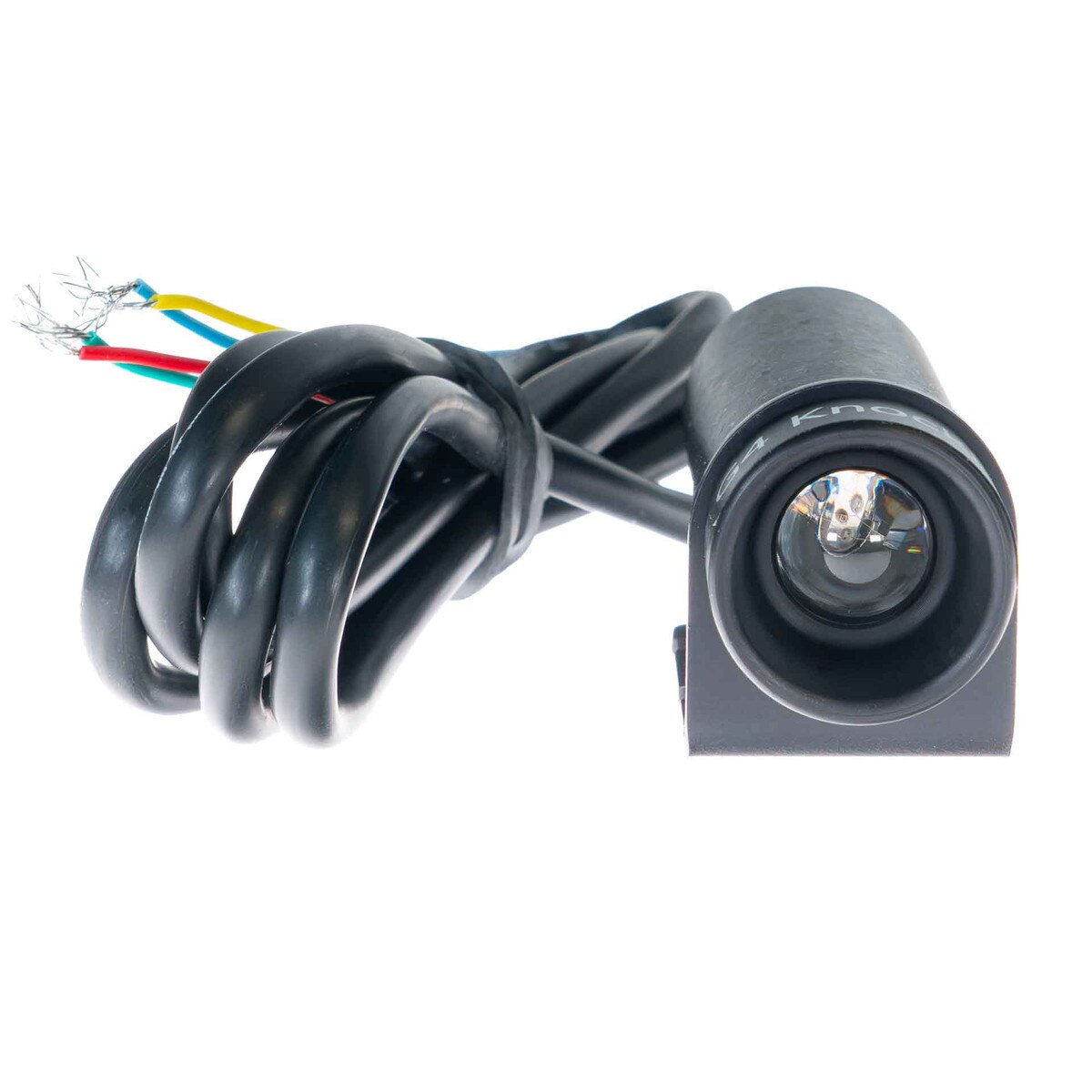

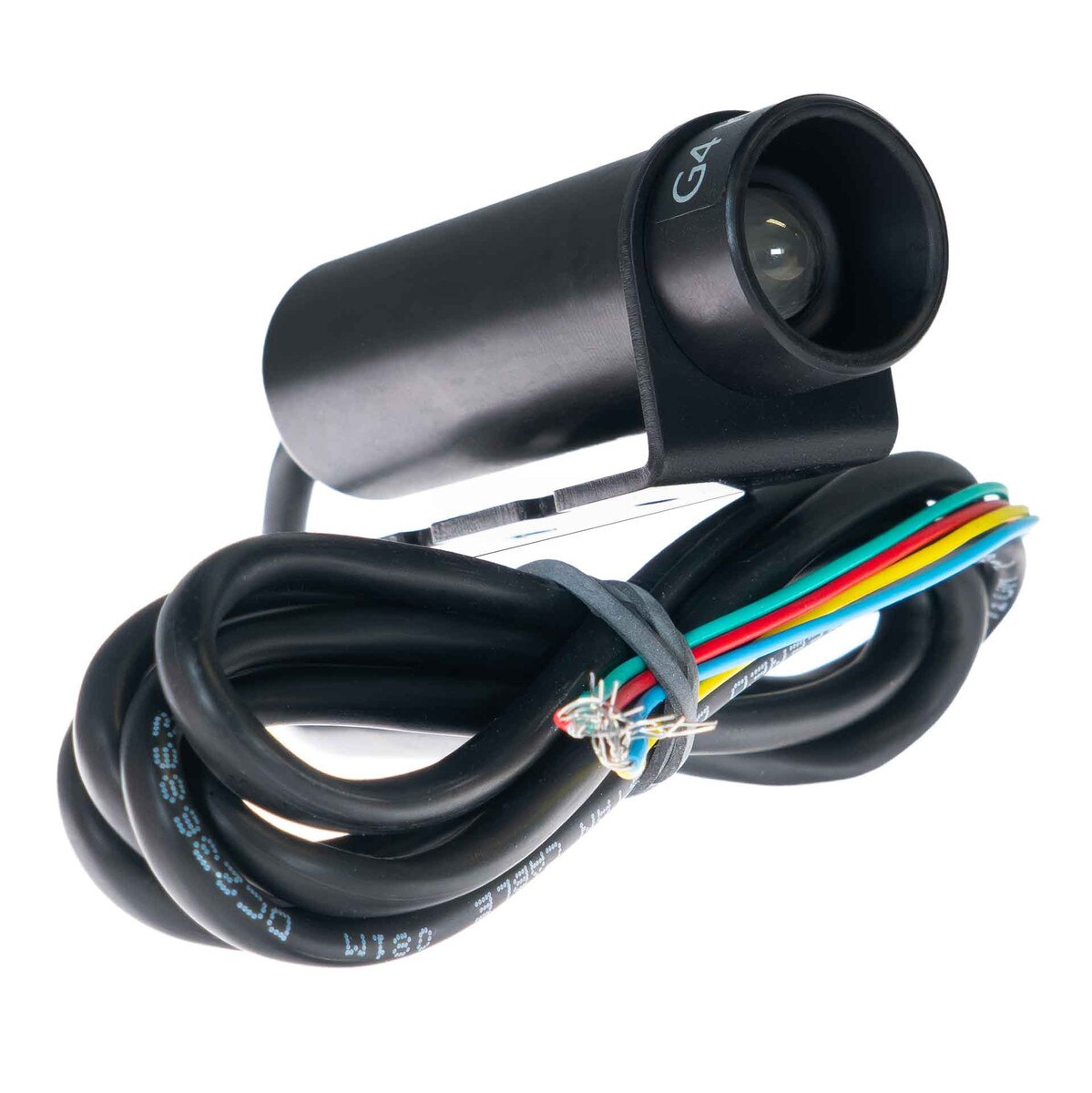

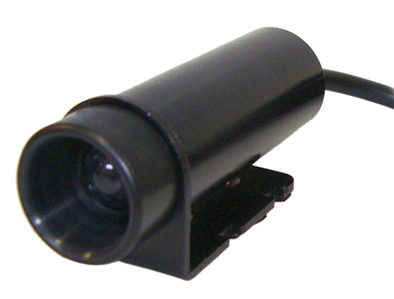

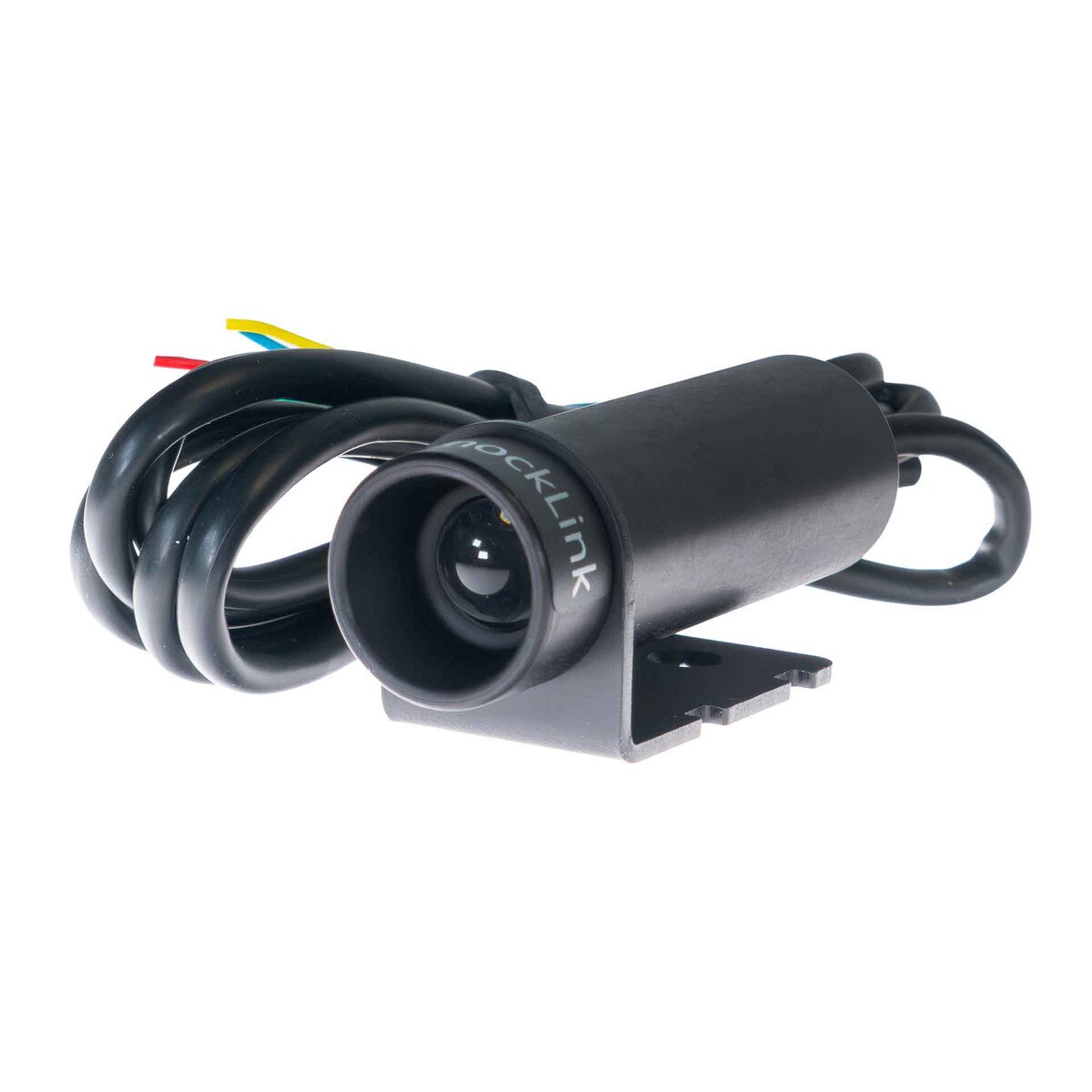

KnockLink G4 (G4KNL)

KnockLink G4 (G4KNL)

114-1000

$357.50 AUD
$357.50 AUD
Sale Sold out
Taxes included.

View full details

Product Description

The Link KnockLink is a self-calibrating visual knock warning device designed to detect engine knock (detonation) and instantly alert the driver with a high-intensity LED warning.

Using intelligent digital signal processing, the KnockLink continuously monitors the knock sensor signal, automatically learning the engine's normal noise profile to accurately identify knock without requiring complex setup or calibration.

Models Supported

Link Knock Sensors.

OEM knock sensors.

Warnings

Requires a compatible knock sensor.

Do not connect the KnockLink and ECU to the same knock sensor.

Not suitable for mechanically noisy engines, including engines with high-clearance pistons and two-stroke engines.



Highlights

The Link KnockLink has the following specifications:

Specifications
  • Standalone knock detection device.
  • Intelligent self-learning knock detection.
  • Self-calibrating operation.
  • No gain or frequency setup required.
  • High detection accuracy.
  • Visual LED knock warning.
  • Monitors one knock sensor.
  • Operates independently of the ECU.
  • Compact CNC aluminium enclosure.
  • Includes Knock Sensor with 2.6 m Loom.
  • Includes wiring loom and mounting bracket.
  • Knock sensor sold separately (PN 101-0053).

Electrical

Operating Voltage Range: 6-26V

Maximum Input Voltage: 26V

Maximum Continuous Current Draw: 100mA
