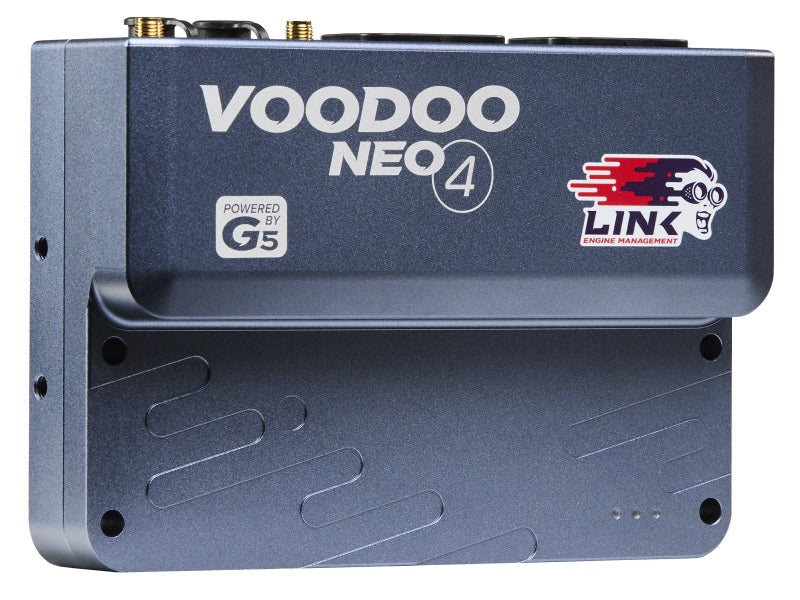

Built on Link's most advanced, most powerful and most flexible ECU platform ever, the G5 Voodoo Neo 4 delivers next-generation engine management for up to 6 cylinder sequential or 4 cylinder staged sequential builds.
The G5 Voodoo range puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, highly customisable I/O, advanced communications and next-generation features.
G5's multi-board architecture delivers expanded I/O capability over the G4X range through highly customisable ADIO and Aux/Digital Input pins for greater flexibility across high-performance builds.
Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN Bus and USB-C tuning, alongside 1GB of internal data logging for high-speed data capture and analysis. The G5 Voodoo Neo 4 also features automatic transmission control, onboard Lambda control, and dual H-bridges for E-Throttle and low power E-Wastegate control.
The G5 Voodoo Neo 4 is ideal for modern high-performance 4 or 6 cylinder builds requiring the next-generation of engine management technology.
Models Supported
The G5 Voodoo Neo 4 can run: 6 cylinders sequential port or direct injection and direct spark, or, 4 cylinders with direct/port staged injection, and direct spark.
The G5 Voodoo Neo 4's multi-board architecture delivers next-generation features including:
ECU Features
Global Positioning System (GPS)
Dual E-throttle Control
8 Custom Math Blocks with 30 characters
Flex Fuel
Trigger Oscilloscope
3 Axis Accelerometer
1k or 10k ohm Selectable Temp Input Pullups
Flexible engine protection limiters
CAN Keypad Control
VVT Control
Open Loop Boost Control
Closed Loop Boost Control
Onboard Digital Wideband Lambda Control
Dual Closed Loop Lambda
Direct Automatic Transmission Control
1 Gigabyte of Internal Data Logging
Motorsport Features
Nitrous Control
Launch Control
Anti-lag
Cruise Control
Traction Control
Race Timer and Power Management
Gear Shift Control
Paddle Shift Control
The G5 Voodoo Neo 4 uses Link's most advanced, most powerful and most flexible ECU platform, delivering advanced communication and specs including:
Outputs
8 Injection Drives
Injection Drives can run Direct Injection via a driver box
6 Ignition Drives
12# Auxiliary Outputs
+5V Sensor power supply
Unused Injection and Ignition drives can be used as an Auxiliary Outputs
# 4 pins are multi-purpose Aux or Digital Input pins. Each pin can be either Aux or Digital Input, not both at the same time.
Inputs
10+ Digital Inputs
4 Temperature Inputs
3 Analogue Inputs
2 Trigger Inputs
2 Knock Inputs
Unused Temperature and Analogue Inputs can be used as Digital Inputs
+ 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux. or Digital Input, not all at the same time.
Inputs / Outputs
6 ADIO Dual Purpose
Communications
2 CAN Bus Channels
1 Wi-Fi USB-C Tuning Connection
1 Ethernet
1 Power Over USB
Data Logging
1GB Onboard Logging Memory
100kHz Maximum Total Logging Rate
250 Logging Channels
Product Dimensions
107mm(L) x 158mm(W) x 45mm(H)
4.21in(L) x 6.22in(W) x 1.77in(H)
Product Weight
730 grams (25.75 ounces)
Material
6061-T6 billet CNC sealed enclosure
Electrical
Operating Voltage Range: 6-30V
Maximum Input Voltage: 30V
Maximum Continuous Current Draw: 17A
What's in the Box
G5 Voodoo Neo 4 ECU
USB-C Connection Cable
Wi-Fi Antenna
4m GPS Antenna (Magnetic or Adhesive Mount)
USB-C and SMA Dust Covers
Quick Start Guide (A5)
Installer I/O table (A3)
Link stickers
Connector
Super seal 4 Row 34 Position x2
Part number 4-1437290-0
Part number 4-1437290-1
Inputs/Outputs
Control up to 6 cylinders with port or direct injection and direct spark, or 4 cylinders with direct/port staged injection, thanks to:8 injector pins6 ignition pins12 aux. output pins(4 Aux pins are shared with 4 DI Pins. You can only use each pin for either Injection or DI, not both at the same time.)6 ADIO pins
Highly customisable IO, using 2 types of multi purpose pins: ADIO pins and Aux./Digital-Input pins. These pins can act as inputs or outputs.
ADIO are a unique pin type. ADIO can act as an Aux Output (switched or PWM), as an Analogue Input, or as a Digital Input, but cannot read PWM/frequency.
Neo 4 has Aux/DI pins which are used as either an Aux pin, or a Digital Input pin. They can read PWM/frequency.
Any unused injector/ignition pins can be used as an auxiliary pin
All ignition and auxiliary pins are back feed protected.
3 analog inputs
10 digital inputs
4 temperature inputs
2 knock inputs
2 trigger inputs
1 x wideband lambda controller
Dual H-Bridge e-throttle control
Dedicated ignition switch pin
5v sensor supply
CAN 1 via Weipu connector. CAN connector now supplies power and ground.
Communications
USB-C (cable included)
Power over USB
WiFi: Connect directly to the ECU via built-in Wifi Access Point, or add it to an existing network (antenna included)
CAN: New WEIPU connector supplies power for CAN devices
Ethernet: Built in ethernet which can function like USB. Also adds the ability to connect to the ECU over a network.
GPS: Functional when GPS antenna connected (antenna included)
Data Logging
1gb logging capacity
Logging over WiFi
100kHz max. total logging rate
250 logging channels
Size & Weight
Length: 107mm (4.21 inches)
Width: 158mm (6.22 inches)
Max side height: 45mm (1.77 inches)
Weight: 730grams (25.75 ounces)
Mounting
4x M5 threaded mount holes on the sides for bracket mounting
4x M5 threaded mount holes on the underside for clean mounting
4 x 5.5mm unthreaded through holes for mounting through (designed for use with M5 bolts)
