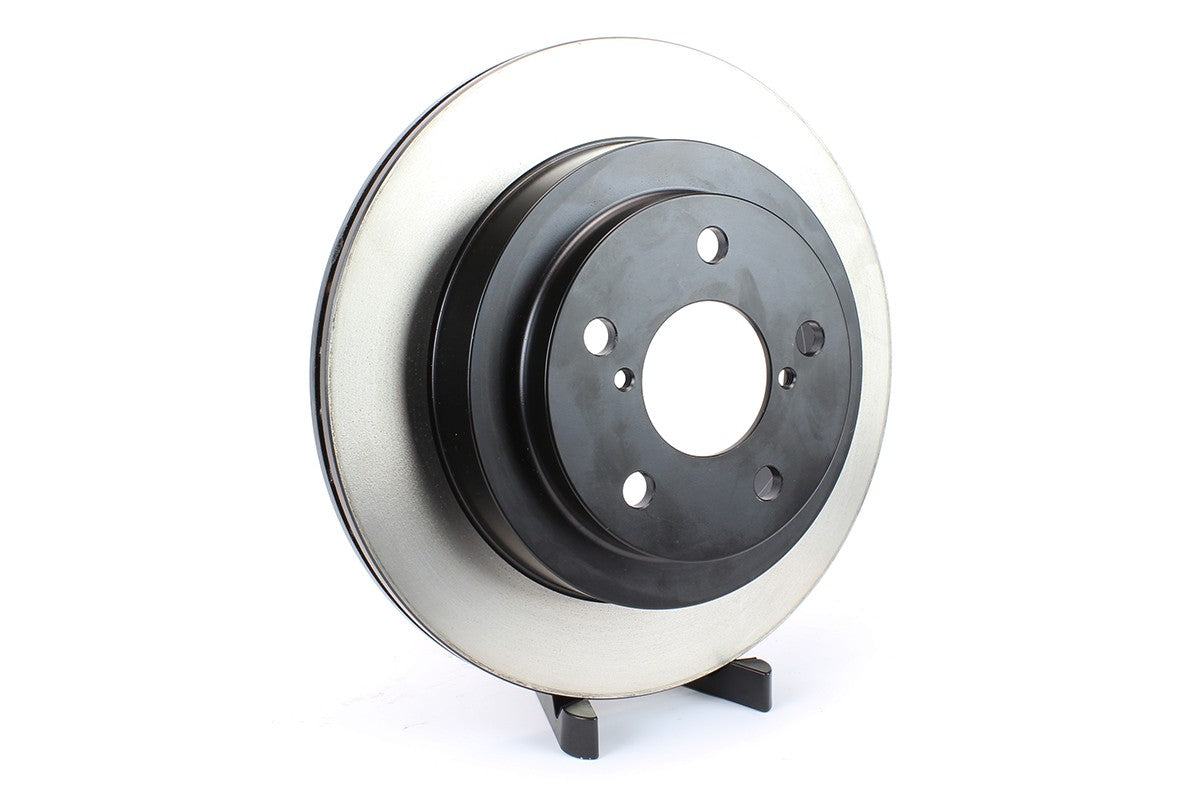

DBA649 | DBA Street Series Standard Brake Rotor - Rear
DBA649 | DBA Street Series Standard Brake Rotor - Rear
Couldn't load pickup availability
DBA649 | DBA Street Series Standard Brake Rotor - Rear
The Direct Replacement rotors represent a complete factory replacement, made to exceed OEM standards. These provide an excellent service replacement for the original equipment, maintaining the reliability, safety and performance of your car.
All of DBA's brake rotors come from a unique starting point - DBA's own developed high carbon cast iron alloy known as XG-150. This proprietary compound was chosen for high strength and excellent thermal stability. This means the rotors naturally possess excellent resistance to warping from excess heat. The base material is taken to the next level with more DBA innovation - the Kangaroo Paw ventilation system maximises the passive cooling ability of a network of machined passages, whilst retaining maximum material to maintain physical rigidity and heat capacity of the rotor. This is finished with machining by Cubic Boron Nitride equipped tooling to produce a surface finish within exact tolerances, resulting in a rotor with minimal variation in thickness and the ability to withstand repeated punishment on the street.
Please Note: Brake Disc Rotors are sold individually. Order two for a pair.
Vehicle Fitment
Vehicle fitment provided in this listing is to be used as a rough guide only and may not actually suit your vehicle. Due to multiple brake packages sometimes being offered by manufacturers it may be necessary to measure your existing brake discs and/or pads and compare with the measurements provided by DBA here:
Click "Part Number Search" tab and input SKU provided above
Product Specifications
Outer diameter [mm]: | 266 |
---|---|
Height [mm]: | 67,5 |
Brake Disc Thickness [mm]: | 18 |
Minimum Thickness [mm]: | 16 |
Centering Diameter [mm]: | 58 |
Pitch Circle Ø [mm]: | 100 |
Weight [kg]: | 6 |
Number of Holes: | 5 |
Class: | standard |
Disc Vent: | standard |
Brake Disc Type: | Vented |
